Product Details

• Basic Information




  manufacturer	Dongfeng Motor
  Brand	Dongfeng T3

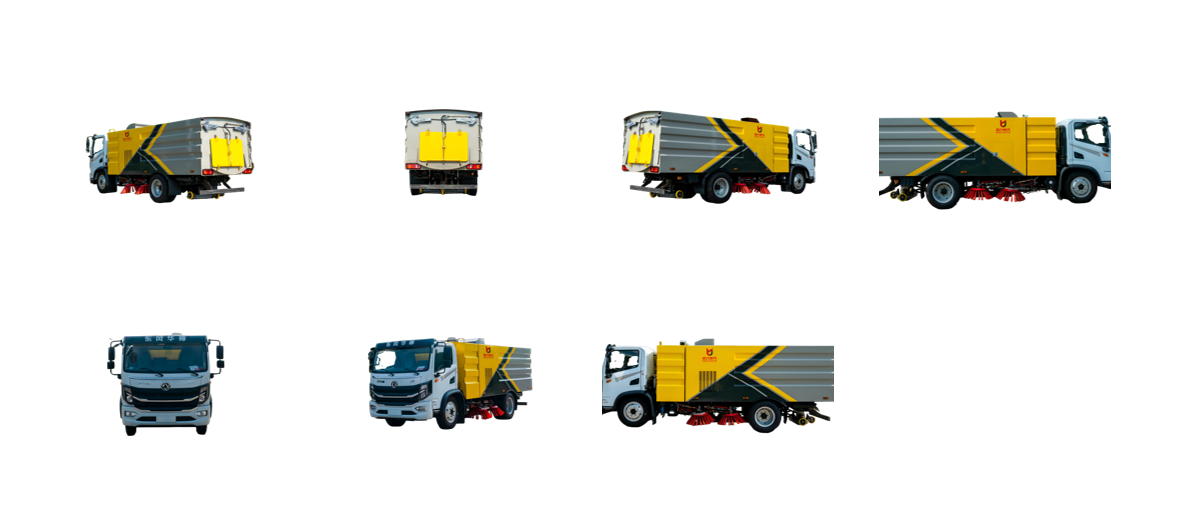

  Vehicle Type	Cleaning sweeper truck
  Engine model	YCY30165-60/D25TCIF1
  Engine power (KW)	121/110
  Energy type	Diesel
  Emission standard	China VI
  Cab capacity	2/3 people
  Tire Specification	8.25R20 14PR
  Top speed (km/h)	88
  Length x Width x Height (mm)	7280,7310,7260,7340*2200,2250,2350 *2700
  Vehicle model	KLF5121TSLE6




  Wheelbase (mm)	3800
  Garbage Tank Volume(m3)	5 (Stainless Steel)
  Clean Water Tank Volume(m3)	2.5 (Carbon Steel)
  Sweeping Width (mm)	2800-3000
  Number of Sweeping Discs	4
  Curb weight (kg)	6980
  Sweeping Operation Speed (km/h)	3-20
  Maximum Sweeping Capacity(m2/h)	60000
  Suction Pipe Diameter (mm)	Φ200
  Suction Particle Size (mm)	≥120
  Garbage Tank Tilt Angle	≥45°
  Sweeping Efficiency	≥98%

• Product Positioning




• Application Scenarios

  Sweeping & Dust Suction
  Equipped with sweeping discs that gather road debris (leaves, gravel, dust, etc.) toward the suction nozzle, the centrally mounted discs feature anti-collision shock absorption and can clean road surfaces as well as vertical curb faces. Advanced Dust Aggregation Technology: Optimized airflow dynamics and structural design of the suction nozzle enhance debris pickup efficiency by 10%. A vacuum negative-pressure system ensures thorough removal of swept waste, sewage, and even embedded stones, significantly improving cleanliness while minimizing dust dispersion.
  Washing & Waste Disposal
  Integrated spray water systems (sweeping disc and suction nozzle sprayers) enable dust suppression during operation. User-Centric Design: Features an extra-wide rear door with >85° opening angle and a waste container tilt angle exceeding 40°, facilitating effortless waste dumping and container cleaning.
  Low-Noise Performance
  Fan Noise Reduction Technology: Simulation-optimized fan blades and a dedicated silencer, tailored to the aerodynamic noise spectrum, reduce overall operational noise by 5%.
  Powerful Performance
  A dedicated auxiliary engine drives the fan and hydraulic system, powering both the fan and high-pressure water pump. An automatic clutch between the auxiliary engine and fan disengages during idle starts/stops, extending the engine’s service life.
